WELCOME TO SHANDONG YUNYU CONSTRUCTION MACHINERY CO.,LTD.

PHONE

+8613853827551

Loader Drive Axle

HOME > PRODUCTS > Product Center > Loader Drive Axle > Loader Drive Axle

ZL15J-1 Loader Drive Axle

Product type: Loader Drive Axle

Address:NO.257 Kangwang West Road,Feicheng City,

Address:Shandong Province.

Tel:+86.538 2095198   2095186   3302973   3302663

After-sale service:+86.538 3302961   2095189   2095178

Fittings department:+86.538 2095198 3302651

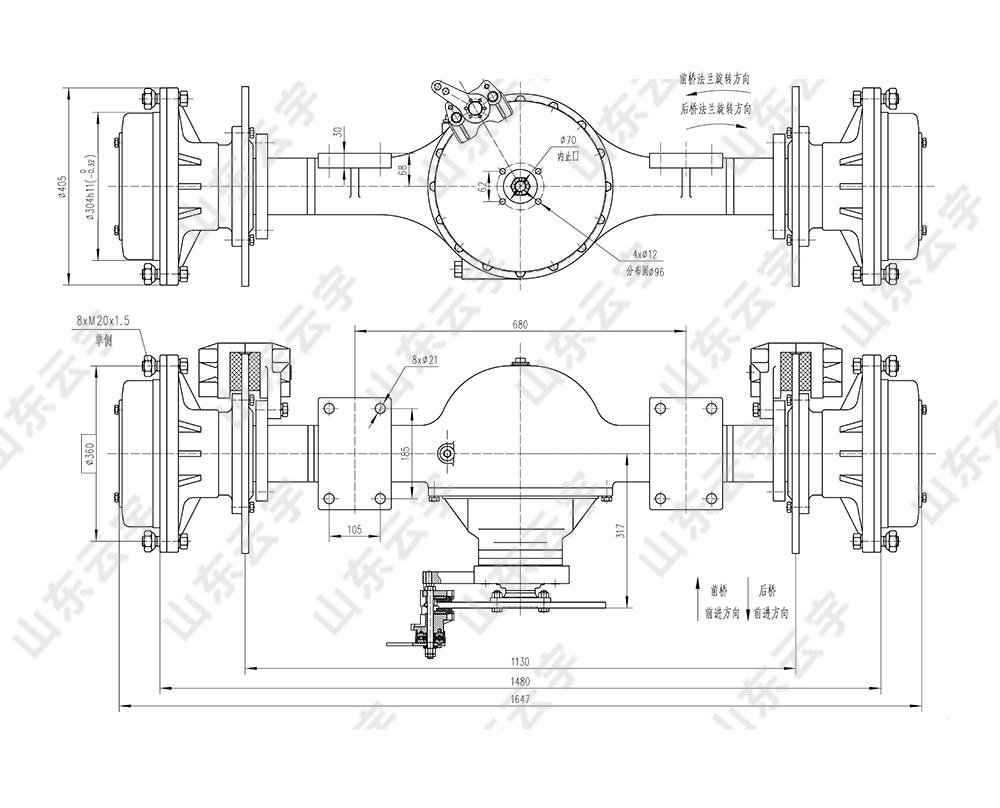

Main connection dimensions

Characteristics:

● Two-stage decelerating mechanism is adopted for the drive axle.

● The spiral bevel gears with great load carrying capacity and high efficiency are adopted for main drive.

● The hub is planetary decelerating structure.

● The main reducer is equipped with the common bevel-gear differential with simple structure and flexible differential function.

● Cast steel with adequate rigidity serves as the material for the axle housing.

● The drive axles with either of the two turning directions are provided in accordance with suers' requirements.

● The brake in clamp-disc braking mode has great braking moment.

● The parking brake is added in the main drive position to realize safe and reliable braking.

Technical parameter

Main transmission ratio
6.667
Transmission ratio at wheel
3.23
Total transmission ratio
21.53
Maximum axle load
8500Kg
Maximum input torque
900N.m
brake
Cylinder diameter
Ф75
Number of cylinders
2
Braking oil pressure
9.8MPa
Braking radius
R167mm
Single-clamp braking moment
4337N.m
